Delval Flow Controls

Introducing our high-performance Delval Flow Controls, designed to exceed expectations in every environment, and brought to you by a service, supplier, and trader company with over 37 years of experience in delivering top-notch solutions across All India. Our featured product range includes the customizable Actuators Accessories Series 83 Limit Switch Box, the superior Actuators Accessories Series 2e Electric Valve, the discount-offered Actuators Accessories Series 25 Pneumatic Scotch Yoke, resilient seated butterfly valves, and superb butterfly valves, all engineered for maximum reliability and performance. Delval Flow Controls stand out for their unmatched durability, adaptability to a wide range of applications, precise flow management, seamless integration with other systems, and industry-leading safety features. With our exceptional supply ability covering the entire domestic market and our commitment to providing the best value through competitive discounts, Delval Flow Controls have become the first choice for businesses requiring superior quality and efficiency. Make the smart choice with our advanced Delval Flow Controls, where every product is built to last, engineered for performance, and backed by decades of expertise tailored to meet your custom requirements.

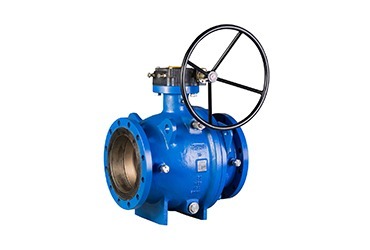

Trunion Mounted Ball Valve

MOQ : 1 Piece

  • Application
  • Oil & Gas, Petrochemical, Power Plants, Chemical Processing, Water Treatment
  • Connection Type
  • Flanged, Butt-weld, RTJ
  • Control System
  • Manual Lever, Gear Operator, Pneumatic/Electric Actuator
  • Disc
  • Forged or Cast Steel Ball
  • Features
  • Double Block & Bleed, Antistatic Device, Emergency Sealant Injection, Blowout Proof Stem, Fire-safe
  • Material
  • Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
  • Media
  • Other, Water, Oil, Gas, Steam, Chemicals
  • Pin
  • High-strength stainless steel trunnion pin
  • Port Size
  • 2 inch to 48 inch (DN50-DN1200)
  • Power
  • Other, Manual, Pneumatic, Electric
  • Pressure
  • Other, ANSI 150-2500 lb; PN10-PN420
  • Sealing
  • Soft-seat or Metal-seat, Fire-safe design
  • Structure
  • Other, Trunnion Mounted Ball, Two-piece/Three-piece Design
  • Temperature
  • -46C to +200C depending on material selection
  • Type
  • Trunnion Mounted Ball Valve
  • Valve Size
  • Customized from 2 to 48
  • Valve Type
  • Full Bore or Reduced Bore
  • Voltage
  • AC 24V/110V/220V; DC 24V for actuated versions

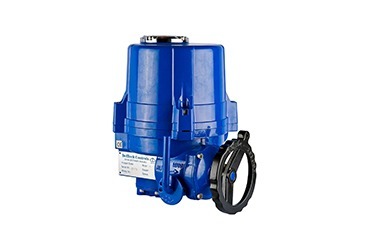

Actuators Accessories Series 2e Electric Valve

MOQ : 1 Piece

  • Application
  • Automation of industrial valves and flow control systems
  • Connection Type
  • Flanged or Threaded
  • Control System
  • ON/OFF or Modulating
  • Disc
  • Stainless Steel
  • Features
  • Corrosion resistant, Quick mount, Manual override
  • Material
  • Aluminium alloy body
  • Media
  • Other, Water, Air, Oil
  • Pin
  • 3 Pin
  • Port Size
  • 25mm to 100mm
  • Power
  • Other, 24W
  • Pressure
  • Other, Max 10 bar
  • Sealing
  • EPDM or PTFE Seals
  • Structure
  • Other, Electric actuator with metal housing
  • Temperature
  • -10C to 55C
  • Type
  • Electric Valve Actuator
  • Valve Size
  • DN25 to DN100
  • Valve Type
  • Butterfly / Ball Valve compatible
  • Voltage
  • 220V AC

Actuators Accessories Series 25 Pneumatic Scotch Yoke

MOQ : 1 Piece

  • Application
  • Industrial automation, valve actuation, oil & gas, water treatment, power plants
  • Connection Type
  • ISO 5211 mounting interface
  • Control System
  • Manual, pneumatic, solenoid or positioner controlled
  • Disc
  • Not applicable (actuator, not valve)
  • Features
  • Modular design, corrosion-resistant, ISO mounting, visual position indicator
  • Material
  • High-strength aluminum alloy; powder coated
  • Media
  • Other, Dry compressed air, inert gases
  • Pin
  • Corrosion-resistant alloy
  • Port Size
  • Standard (customizable as per valve size)
  • Power
  • Pneumatic
  • Pressure
  • Other, 2.5 to 8 bar (36 to 116 psi)
  • Sealing
  • High-grade synthetic seals
  • Structure
  • Other, Scotch yoke mechanism, double/ single acting
  • Temperature
  • -20C to +80C
  • Type
  • Quarter-turn actuator
  • Valve Size
  • DN 25 to DN 400 (customizable)
  • Valve Type
  • Compatible with ball, butterfly, and plug valves
  • Voltage
  • Not Applicable (pneumatic operation)

Actuators Accessories Series 83 Limit Switch Box

MOQ : 1 Piece

  • Application
  • Used for monitoring valve position in automated valve systems
  • Connection Type
  • Terminal strips for electrical connection
  • Control System
  • Mechanical switch feedback for control system integration
  • Features
  • Mechanical visual indicator, Dual cable entries, Corrosion-resistant
  • Material
  • Die-cast aluminum powder coated
  • Media
  • Other, Air, Water, and Non-corrosive fluids
  • Pin
  • Multiple pin terminal block connection
  • Port Size
  • Standard M20 x 1.5 or 1/2 NPT cable entry
  • Power
  • Other, Mechanical
  • Pressure
  • Other, Up to 10 bar
  • Sealing
  • Weatherproof and dustproof
  • Structure
  • Other, Weatherproof compact enclosure
  • Temperature
  • -20C to +80C
  • Type
  • Limit Switch Box
  • Valve Size
  • Compatible with standard actuator mounting
  • Valve Type
  • Suitable for rotary actuators
  • Voltage
  • Suitable for both low and standard voltage environments

Butterfly Valves

MOQ : 1 Piece

  • Application
  • Industrial Flow Control
  • Connection Type
  • Wafer Type, Lug Type, Flange End
  • Control System
  • Manual Lever or Gear Operated
  • Disc
  • SS 304 / SS 316
  • Features
  • Leak Proof, Corrosion Resistant, Easy to Install
  • Material
  • Cast Iron / Ductile Iron
  • Media
  • Other, Water, Air, Oil
  • Pin
  • Stainless Steel
  • Port Size
  • DN50 to DN300
  • Power
  • Manual
  • Pressure
  • Other, PN10 / PN16
  • Sealing
  • EPDM / Nitrile / PTFE
  • Structure
  • Other, Wafer, Lugged, Flanged
  • Temperature
  • Up to 120C
  • Type
  • Butterfly Valve
  • Valve Size
  • 2 to 12 (DN50 to DN300)
  • Valve Type
  • Quarter Turn
  • Voltage
  • Not Applicable (Manual)

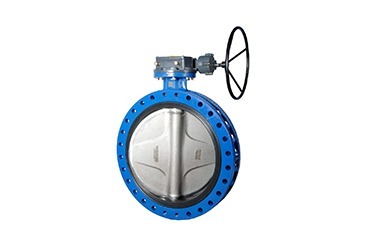

Resilient Seated Butterfly Valves

MOQ : 1 Piece

  • Application
  • Water Supply, HVAC, Chemical Industry, Food Processing, General Industry
  • Connection Type
  • Wafer & Lugged Flanged
  • Control System
  • Manual Lever / Gearbox / Electric / Pneumatic Actuator
  • Disc
  • Ductile Iron / Stainless Steel / Aluminum Bronze
  • Features
  • Bubble-tight shutoff, bi-directional, low torque operation
  • Material
  • Body: Cast Iron, Ductile Iron; Seat: EPDM, NBR
  • Media
  • Other, Water, Air, Oil, Light Chemicals
  • Pin
  • Stainless Steel
  • Port Size
  • 2 to 24 (DN50 to DN600)
  • Power
  • Other, Manual, Electric, Pneumatic
  • Pressure
  • Other, PN10 / PN16 / 150 PSI
  • Sealing
  • EPDM, NBR, PTFE
  • Structure
  • Other, Wafer / Lug Type
  • Temperature
  • -10C to 120C
  • Type
  • Resilient Seated Butterfly Valve
  • Valve Size
  • DN50 to DN600 (2 to 24)
  • Valve Type
  • Butterfly Valve
  • Voltage
  • Available as per actuator requirements
